No |
Product |
Specification |
Safety Zone |
FPT-001 |
posts:4 black tubes(Ø114x3mm), dircet buried(400mm), length for them: 2 pcs 2800mm, 1 pc 1600mm,1 pc 800mm. Distance from beam to the ground:300/1100/2300mm. |
4.66x0.16x2.45m |
7.66x3.16m |
FPT-002 |
posts:6 black tube(Ø114x3mm), dircet buried(400mm), length for them: 3 pcs 2800mm, 1 pc 1900mm,1 pc 1700mm,1 pc 1500mm. Distance from beam to the ground:2100/1300/1100/900mm.Wall Bars 1 pc. |
7.66x0.16x2.45m |
10.66x3.16m |
FPT-003 |
posts:6 black tube(Ø114x3mm), dircet buried(400mm), length for them: 10 pcs 2800mm. Distance from beam to the ground:1800/1900/2200/2300mm. Scalling Ladders 2 pcs. |
7.36x1.66x2.45m |
10.36x4.16m |
FPT-004 |
posts:6 black tube(Ø114x3mm), dircet buried(400mm), length for them: 5 pcs 2800mm. Distance from beam to the ground: 2000/2100/2300mm. Wall Bars 1 pc. |
3.16x3.16x2.45m |
6.16x6.16m |

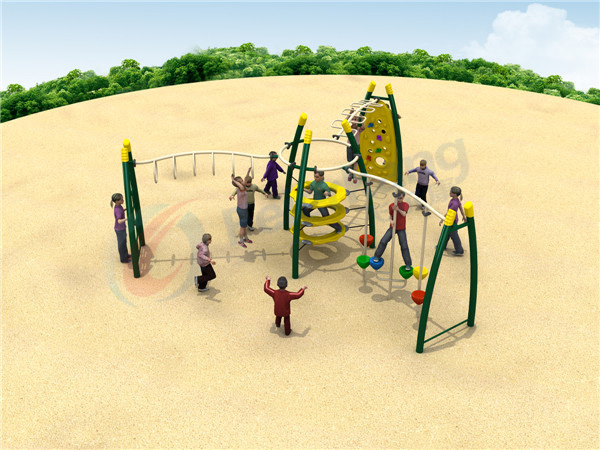

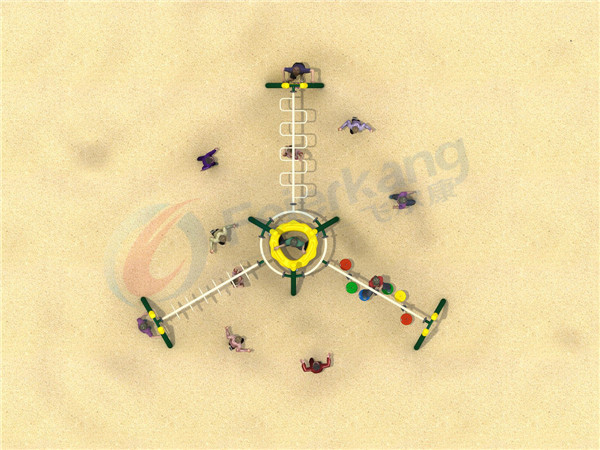

FPT-005 |
posts:6 black tube(Ø114x3mm), dircet buried(400mm), length for them: 5 pcs 2800mm, 1 pc 1900mm, 5 pcs 1800mm, 1 pc 1700mm, 1pc 1500mm. Distance from beam to the ground:2300/1300/1100/900mm. Wall Bars 4 pcs. Scalling Ladders 1 pc. |
9.69x3.16x2.45m |
12.69x6.16m |
FPT-006 |
posts:12 black tube(Ø114x3mm), dircet buried(400mm), length for them: 12 pcs 2800mm. Distance from beam to the ground:2300/2100/1900. Wall Bars 4 pcs. Scalling Ladders 2 pcs. |
7.44x3.16x2.45m |
10.44x6.16m |
FPT-007 |
posts:15 black tube(Ø114x3mm), dircet buried(400mm), length for them: 1 pc 2800mm, 1 pc 1800mm, 1 pc 1600mm, 1pc 900mm,1pc 700mm. Wall Bars 1 pc. Scalling Ladders 2 pcs. |
5.86x4.66x2.45m |
8.86x7.66m |
FPT-008 |
by embeded part: 120*3*2800mm, center distance: 1500mm. |
6.86*4.25*3.7m |
9.86*7.25m |
FPT-009 |
by embeded part: 120*3*2800mm, center distance: 1500mm. |
6*4.2*2.9m |
9*7.2m |
